Station Setup

Station Setup

The station sequencer controls everything, the brains, in the below setup the IC-746PRO only acts as the heart.

The 144 MHz default antenna port has been unplugged internally so that VRX is used for receiving.

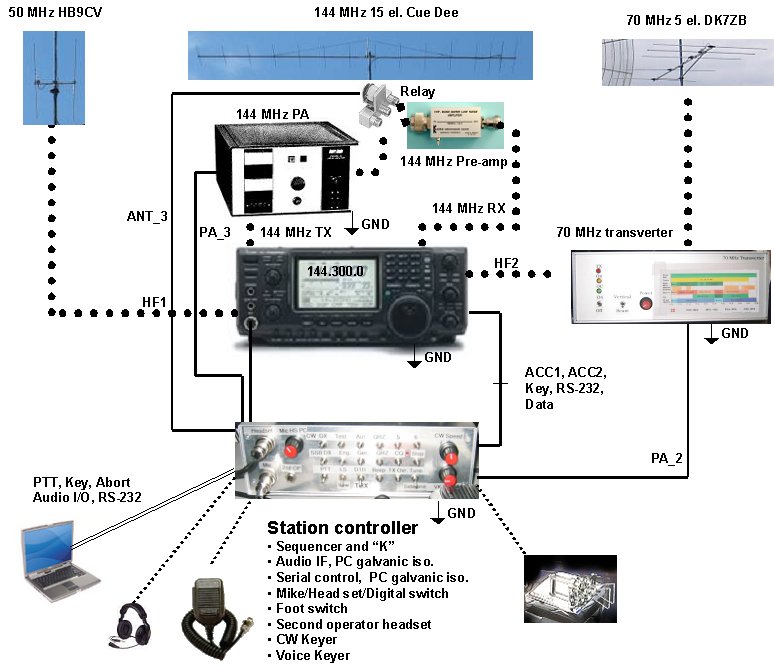

Schematic of the vital parts in the OZ2M station setup.


Bo, OZ2M, www.rudius.net/oz2m
